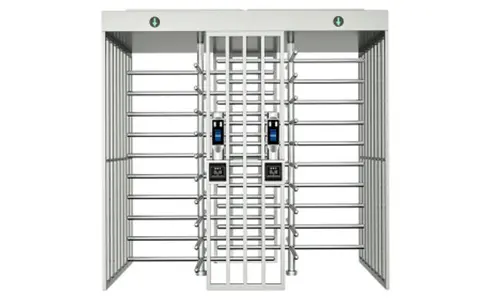

Full Height Turnstile Gate
Product Inquiry Now
Please share your requirements and detailed information with us.We will quote for you within 24 hours!
Product Specifications
Material: 304 stainless steel
Top cover thickness: 0.68mm
Box thickness: 0.68mm

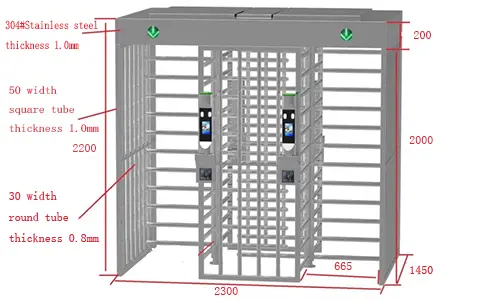

External dimensions: 21 50*1400*2200mmStick length: 600mm
Channel width:700mm
Swing direction: One-way or two-way
Power supply voltage: AC220+10% V,50HZ
Drive motor: DC electromagnet 30W/24V. Movement type: mechanical semi.automatic movement, hydraulic buffer, mechanical movement (customized)
Input interface: Relay switch signal or RS-485 level signal
Passing speed: About 40 people/minute (normally open), 25-30people/minute (normally closed)
Gate opening and closing time: 1-2 seconds
Working environment: indoor, outdoor (with rainproof rack)
Communication control interface: TCP/IP communication, RS-485 standard(customized)
Normal service life: 3 million times
Humidity:5%–90%
Size of induction card reader, with standard mounting bracket, or customizedOpening time: 0.5 seconds
Passing speed: 30 people/minuteCommunication interface: standard TCP/IP communication
Input interface: dry contact signal or +12V level signal or DC12V pulse signal with pulse width ≥100ms, driving current ≥10mA ;
Working environment: indoor, outdoor (shaded shed) Temperature: -15°C ~60 °C
Relative humidity: ≤90%, no condensation
