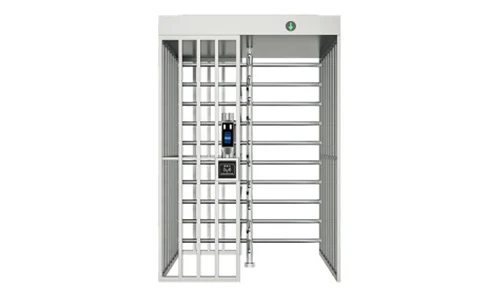

Full Height Turnstile Gate
Product Inquiry Now
Please share your requirements and detailed information with us.We will quote for you within 24 hours!
Product Specifications
- Material: 304 stainless steel
- Top cover thickness: 0.68mm
- Box thickness: 0.68mm

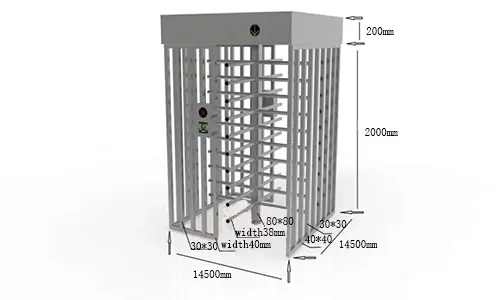

- External dimensions: 1400*1400*2200mm
- Stick length: 600 mm, Channel width: 700mm
Main column 2.0 - Swing direction: One-way or two-way
- Power supply voltage: AC220+10% V,50HZ
- Drive motor: DC electromagnet 30W/24V
- Movement type: mechanical semi-automatic movement; hydraulic buffer mechanical movement (customized)
- Input interface: Relay switch signal or RS-485 level signal
- Passing speed: About 40 people/minute (normally open), 25-30 people/minute(normally closed)
- Gate opening and closing time: 1-2 seconds
- Working environment: indoor, outdoor (with rainproof rack)
- Communication control interface: TCP/lP communication, RS485 standard(customized)
Normal service life: 3 million times - Humidity:5%–90%
- Size of induction card reader: with standard mounting bracket, or customized
- Opening time: 0.5 seconds
- Passing speed: 30 people/minute
- Communication interface: standard TCP/lP communication
- Input interface: dry contact signal or +12V level signal or DC12V pulse signal with pulse width ≥100ms, driving current≥10mA;
- Working environment: indoor, outdoor (shaded shed)Temperature: -159 ~ 60CRelative humidity: ≤90%, no condensation

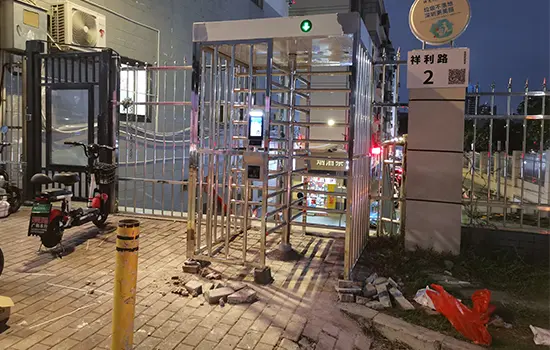

More Installation Project
