Main Application Scenarios:
Industrial parks, factories, schools and universities, government facilities, railway and bus stations, airports, hospitals, and other commercial or public facilities.

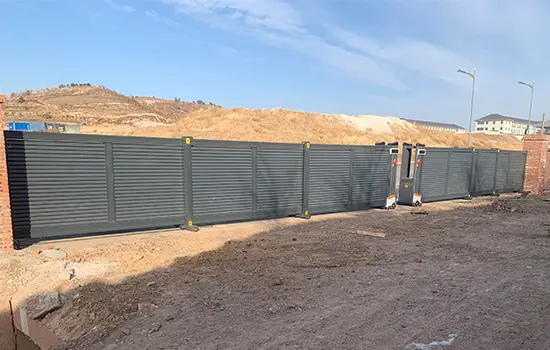

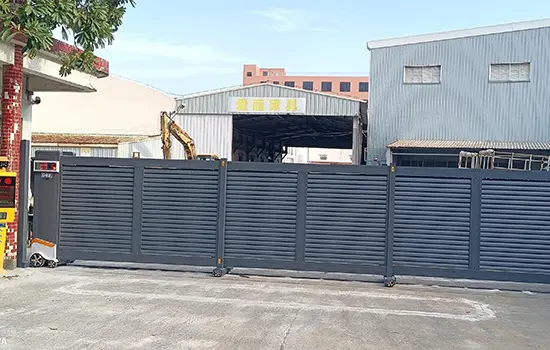

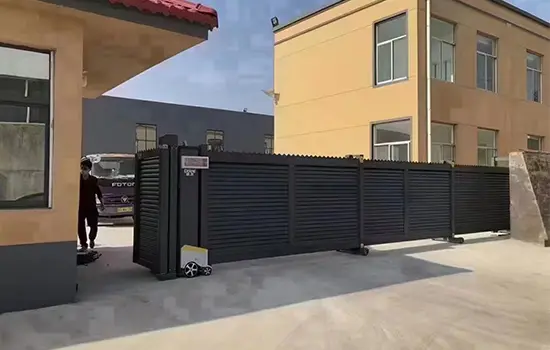

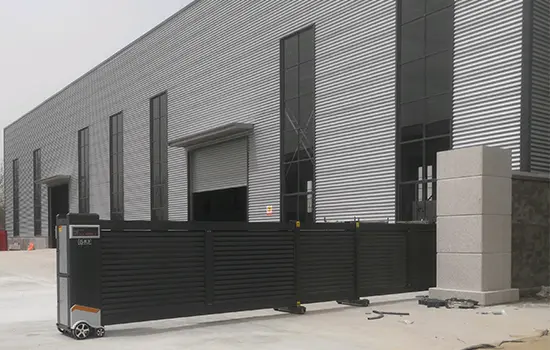

Installation Projects
Available from 6 meters upward — including 6m, 8m, 10m, 12m, 15m, 20m, and fully customized dimensions upon request. Based on your site conditions, traffic patterns, and project requirements, we provide fully engineered access solutions tailored to your specific needs. Whether it involves telescopic sliding gates, cantilever gates, barrier systems, or integrated automation, each project is designed as a comprehensive solution to ensure optimal structural strength, space efficiency, operational reliability, and long-term performance.
In industrial parks, factories, logistics centers, commercial complexes, schools, ports, and other high-traffic facilities, entrances often have limited retraction space while handling frequent vehicle and pedestrian flow. These environments demand gates that can operate quickly, safely, and continuously, even in peak traffic periods.
Traditional single-panel sliding gates require long back-run distances and are often restricted by walls, landscaping, or parked vehicles. They can experience structural stress over large openings and frequent use, leading to increased maintenance. Telescopic sliding gates overcome these limitations with a multi-panel, synchronized design that maximizes opening width while minimizing sliding distance.
- Multi-panel telescopic structure — allows the gate to retract in a compact footprint, making it ideal for entrances with limited space while maintaining full-width clearance.
- Heavy-duty reinforced steel frame and precision linkage — ensures smooth, synchronized movement and stability across wide spans, supporting frequent daily operation.
- Engineered for high-frequency use — perfect for industrial parks, logistics hubs, schools, and transportation facilities where gates must operate reliably with minimal downtime.
- Integration-ready with automation systems — fully compatible with electric motors, access control, safety sensors, and other intelligent management solutions for enhanced operational efficiency.
- Low-maintenance, durable design — built to deliver years of dependable operation with minimal upkeep, reducing operational costs across the gate’s lifecycle.
- A telescopic sliding gate customized as part of a comprehensive site solution delivers efficient, safe, and reliable access control tailored to the specific demands of your industrial, commercial, or institutional project.
Product Specifications
- The limit length of the gate body is 22 meters, and the clearance at the gate is 20 meters; the height can be made from 1 meter to 2.2 meters (trackless can be used within 18 meters, and the ground is required to be very flat), the gate body running speed: 12 meters per minute, motor power: 650W;
- The gate body is assembled by high-quality aluminum alloy, without buried joints, the overall shape is beautiful and generous, durable and not easy to rust;
- The gate body is a multi-piece stackable type, which solves the problem of shrinking after the gate is fully closed. The number of stacked pieces can be 25 pieces (segmented according to the length of the user);
- Applicable field: all gates on the level water surface (the ground should not have obvious steps and potholes, the horizontal drop between the left and right is not more than 10 cm for 10 meters, and the horizontal drop between the front and rear is not more than 1 cm per 1 meter);
- The motor is equipped with overheating and overheating protection devices. When the motor runs continuously to a certain speed, it will automatically cut off the power and enter the protection state to prolong the service life of the motor;
- A display screen is installed at the front of the gate body, and prompt information or customized information will be displayed scrollingly during operation;
- The upper and lower frames of the gate body can be selected to prevent rain, snow, and sand from entering the structure to ensure that the harsh environment will not affect the normal use of the gate;
- Follow-up harmonic loop routing technology to ensure electricity safety;
- Wide gate chassis, good wind resistance, equipped with wind-resistant hook design, can be installed with steel rails or aluminum alloy rails;
- Baking paint process: choose Holland Aknojer electrostatic powder without spraying;
- Emergency stop function: When the product is running well and encounters an emergency, the power of the main control box can be quickly cut off through the emergency stop switch;
- Voice function: When the gate body is running, there is a voice prompt function to attract the attention of vehicles and personnel;
- Anti-collision function: In the state of closing the gate, the intelligent infrared anti-collision can immediately stop and return automatically when encountering people or objects;
- Safety and anti-theft: when the gate body is in the stop state, the gate body can be self-locked through the worm gear mechanism of the reduction box, and the external force cannot be pushed open;
- Leakage protection: The product has a leakage protection function, which can protect the control system from grounding, overcurrent, and overvoltage;
- Compatible with smart devices: ①Access control (finger code, fingerprint access control, secret card) ②License plate recognition ③Face recognition ④Bluetooth recognition ⑤Mobile APP, etc.;
- The gate is 145mm from the ground, and anti-climbing silver teeth (40mm) can be added to the top of the gate, waterproof level: IP44;
- The relationship between the light on the gate body and the length of the gate (behind the pillar): two sections: gate length = light + 12 meters three sections: gate length = light + 14 meters four sections: gate length = light + 1 meter five: gate = See light + 18 meters.
telescopic sliding gate tructure and function
High-power motor
Automatic telescopic gate motor is equipped with overheating and overload protection devices .The motor runs continuously up to a .When the temperature is set, it will automatically cut off the power and enter the protection state to prolong the service life of the motor.
Intelligent infrared sen device
Optional anti-pinch, anti-collision function, in the opening/closing operation state, the mechanical anti-pinch switch device is touched, the rubber strip by people or objects will trigger the anti-pinch anti-collision function, touch the door can be quickly cut off to stop operation, to ensure safety.
High-density aluminum
Telescopic gate main beam is made of high-strength carbon steel or aluminum alloy, and the structure is firm.Hot dip galvanizing + spraying treatment, rich colors, more choices.
Running smoothly
The gate body is designed to operate in sections. Each section of the gate body has an independent chassis and axle wheel, which is stable in operation and elegant in appearance.
