Product Specifications
- System control: electro-hydraulic, optional built-in hydraulic station within 3 meters
- Container trucks over 100 tons can pass through the pressure.
- Rising time: ≤3S (1.5~5S adjustable)
- Working temperature: -35C~75C (suitable)
- Material: A3 carbon steel anti-rust primer + fluorocarbon topcoat
- Weight: about 400kg per meter
- Body specifications: 800 long * 500 wide * 910mm high
- Motor: 3HP*4P three-phase 380V (industrial grade)
- Oil pump (industrial grade)
- Heavy-duty hydraulic cylinder: HOB63-200CA+1
- Double-action double oil circuit manual pump 2, 3ML/time (industrial grade)
- Fuel tank volume: 60 liters
- Hydraulic pipe: PT international standard interface, 1/2 double-layer steel wire
- Power supply: three-phase 380 (control voltage 24V)
- System power W: 37K
- Falling time: ≤2S (1~5S adjustable)
- Material thickness: 16, 20, 25mm (optional)
- Color: Customizable color
- Protection level: IP65

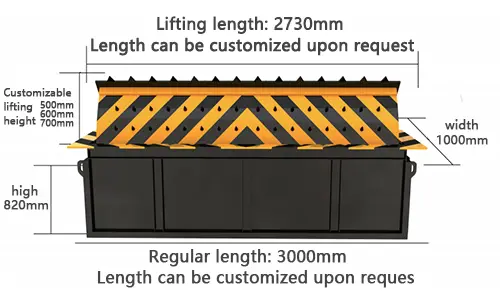

- Regular size:3000*1000*820mm
- Control module: SCM customizable PLC
- Original chips imported from the United States
- Power switch (industrial grade)
- Control solenoid valve (industrial grade)
- Power supply industrial grade (-28”C -85C)
- The control range of the remote control is within 30M
- Customizable LED: Display text address phone
- Lifting height: 500mm (600/700mm can be customized)
- High pressure pipe; (industrial grade)

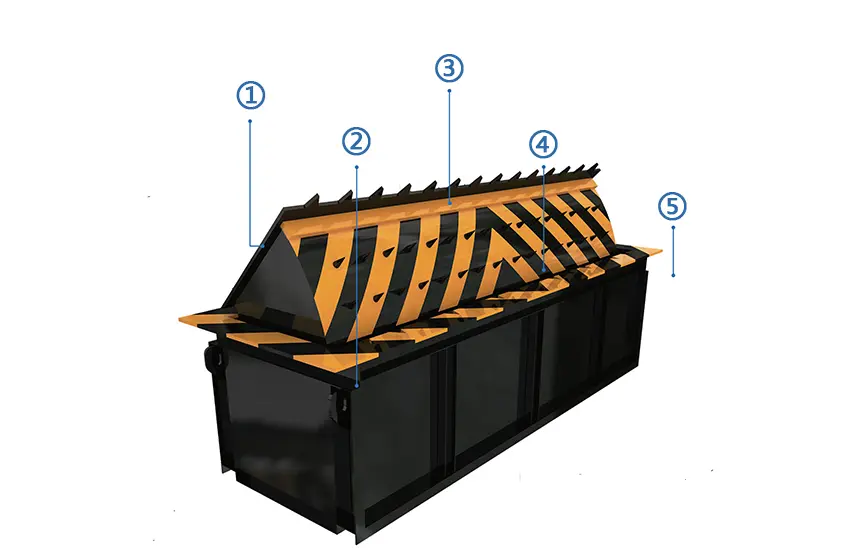

① Road Blocker Machine Spike
The sashimi has a diameter of 30 mm and a length of 60 mm, with both diameter and length customizable. It features a fully welded construction for enhanced strength and impact resistance.
② Built-in Hydraulic Power (Pptional)
Equipped with an integrated micro hydraulic power unit, eliminating the need for external hydraulic pipes, making maintenance and installation simple (ideal for compact road blocker systems within 3 meters).
③ LED Light
Can be customized to add warning LED lights or advertising screens. LED advertising screens can be set with 500 words of custom content.
④ Overall Material
The road blocker machine is made of A3 carbon steel and can withstand vehicles weighing up to 100 tons. The surface is sprayed with a plastic effect.
⑤ Lifting Hook
The body features reserved lifting rings for easy lifting during installation, facilitating the movement and transportation of the equipment during setup.
⑥ 3M Reflective Polish
3M diamond grade reflective stickers, the reflective effect at night is as high as more than 85%, and the color can be chosen from yellow, red, green, and other reflective effects (customization is supported).
