Speed Gate
Product Specifications
Adjustable opening and closing delay time.
The alarm system activates in case of unauthorized or illegal entry.
Anti-reverse intrusion to prevent backward passage.
Designed for indoor installation or under a building canopy.
Equipped with 10 pairs of infrared sensors for anti-pinch protection.
Built-in lightning and leakage protection for enhanced safety.
Automatic opening during power failure to ensure emergency evacuation.
Auto-reset function: if a valid credential is presented but no passage occurs within the set time, the system automatically cancels the access authorization.
Compatible with IC/ID cards, magnetic stripe cards, barcode scanners, anti-static devices, and other access control systems.
The barrier arm operates smoothly, quietly, and reliably, ensuring quick unlocking and stable performance.
Supports multiple traffic modes—one-way or two-way—with adjustable running speed and several operation modes available for different scenarios.
- Drive motor: servo motor
- Voice prompt: supported
- Shell material: SUS304 stainless steel
- Gate opening mode: card, face, infrared, etc.
- Motor service life: more than 10 million times
- Channel width: 600mm-1200mm
- Maximum customized channel width: 1200mm
- Traffic speed: 20~40 people/min
- Opening time: ≦0.3s, stepless speed regulation
- Infrared shooting: 10 pairs
- Chassis thickness: foot 1.5mm
- Swing arm material: transparent acrylic
- Swing arm thickness: 10mm
- Power supply mode: AC 100~240V
- Protection class: IP54
- Communication protocol: Standard 485
- Motor power: 130W

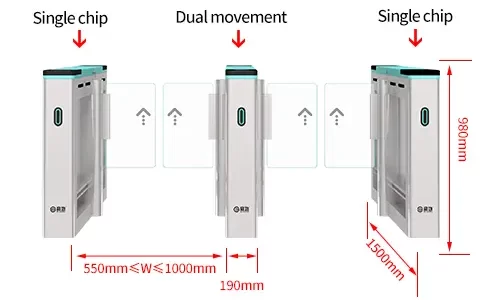

- Product size: 1500mm×120mm×980mm (length×width×height)
Product Features
Access contro
There are several methods to open a turnstile gate, and card swiping is among the most commonly used. It allows precise management of personnel entry and exit, ensuring one card corresponds to one person. Multiple access cards can also be configured upon request
Face recognition
Face recognition is an advanced access method for pedestrian turnstiles. Authorized personnel can pass by simply scanning their faces. This contactless, efficient solution ensures secure and smooth entry and can be integrated with attendance systems—ideal for offices, campuses, factories, and government buildings.
Palm Vein Recognition
The turnstile features advanced palm recognition, allowing authorized personnel to pass quickly and securely with a simple scan. It ensures efficient, contactless access while maintaining high-level security for your premises.
Triple anti-pinch, Safe passage
Equipped with mechanical, infrared induction, and circuit control triple protection, the system provides anti-pinch and anti-collision functions, effectively preventing injuries or impact accidents and ensuring safer passage.

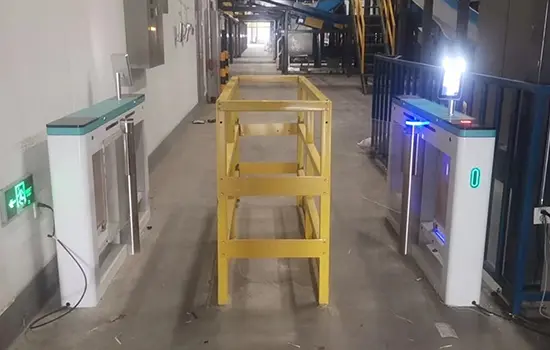

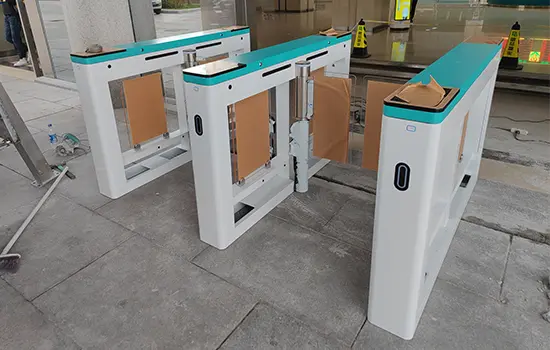

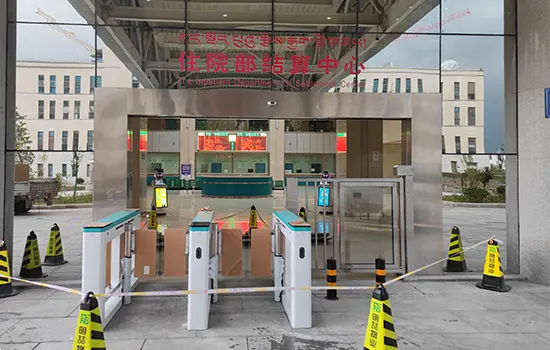

Project Cases
