Remote control
No wheels and no tracks
Adaptable to any terrain
Precise movement and precise limit
Product Inquiry Now
Please share your requirements and detailed information with us.We will quote for you within 24 hours!
Main Application Scenarios:
Industrial parks, factories, schools and universities, government facilities, railway and bus stations, airports, hospitals, and other commercial or public facilities.

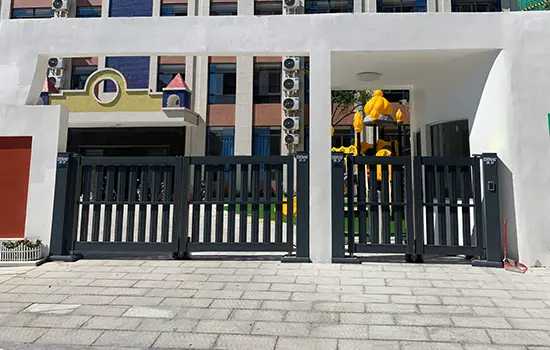

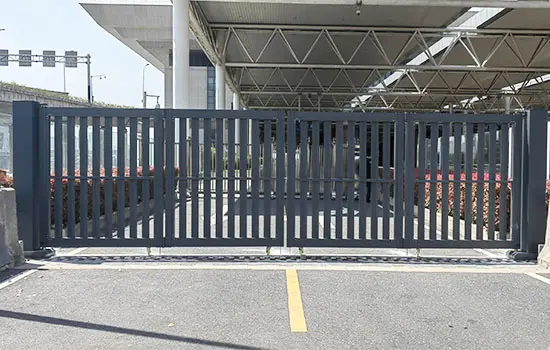

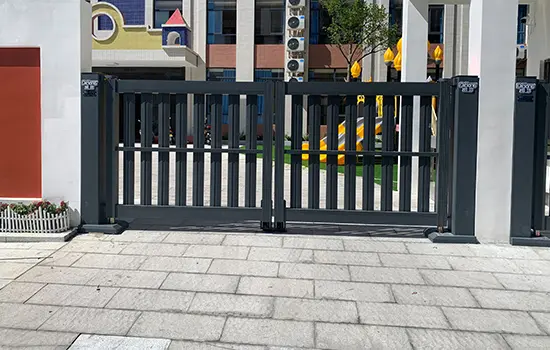

Project Cases
In industrial parks, logistics centers, school campuses, train stations, airports, ports, large warehouses, commercial complexes, and other high-traffic locations, both vehicles and pedestrians pass through wide entrances frequently.
Traditional sliding gates open slowly and tend to deform over time;
Roll-up doors lack sufficient wind resistance for wide openings;
Conventional gates struggle with load-bearing when the width increases, leading to high maintenance costs;
Peak-flow scenarios—such as school dismissal hours or logistics rush periods—require higher efficiency and enhanced safety.As a result, these environments need a long-lasting, low-maintenance, and highly reliable entrance solution capable of handling large spans.
Available from 6 meters upward — including 6m, 8m, 10m, 12m, and tailored dimensions upon request. Based on your site conditions and project requirements, we provide fully customized engineering solutions to ensure optimal strength and long-term reliability.
Trackless design — no dust accumulation, no water buildup, and no obstruction for vehicles, forklifts, and school buses
Heavy-duty hinge and reinforced steel structure — ensures excellent wind resistance and stability for large openings
Designed for long-lasting, heavy-duty use, making it perfect for schools, industrial parks, and other high-traffic environments.
Compatible with automation systems, radar sensors, safety photocells, and access control integration
Built for long-term performance with minimal maintenance requirements
Product Specifications
The maximum length of the gate is 4.5 meters, the height can be 1-2.2 meters, the gate opening/closing time: about 12 seconds, motor power: 100W;
The pillars of the gate body are made of new aluminum materials, the fasteners are made of high-quality steel, and the structural parts are made of high-quality stainless steel. The surface is galvanized for anti-corrosion treatment and then painted at high temperature to have strong rust resistance.
The gate body is suspended in the air and does not need to rely on wheels or rails to run, and is not restricted by gateways. (Such as: railways, ice and snow accumulation, underground cables, slopes, etc.)
The gate frame and inner vertical materials of the gate body are made of high-quality aluminum alloy profiles. There are no welding points. The overall shape is beautiful and elegant, strong and durable, and not easy to rust.
The gate body folds and opens, and the gate opens and folds at the same time. The operating stroke is small and the operation occupies a small area.
The gate motor is equipped with the function of stopping when encountering obstacles or returning when encountering obstacles. If you accidentally hit an obstacle, the impact of the low-power motor on the gate body and the person or object being hit will be relatively small;
Switch limit: Electronic learning limit is adopted, making learning easier and more convenient;
Confidentiality performance: Using rolling code remote control, no duplicate codes, anti-theft codes, good confidentiality performance, safe and reliable;
Single-arm adjustable mode: It can realize the function of opening and closing a single gate, or it can also realize the function of opening and closing two gates at the same time;
Paint process: Use Dutch Aknobel electrostatic powder spraying;
The gate motor is equipped with a manual clutch. When there is a power outage or maintenance, the manual clutch key can be used to open the clutch device and manually push the gate to run;
Can be used with smart devices: 0 access control (fingerprint password, fingerprint access control, password swipe card, license plate recognition, face recognition, Bluetooth recognition, mobile APP, etc).
The gate body is 130mm off the ground. Anti-climbing serrations can be added at the top and bottom of the gate body. Waterproof grade: IP53. Gate row weight: about 19KG/meter. Column weight: about 30KG/meter.
Access contro
Aluminum alloy full-body gates are stronger and more durabl, no rust or fading.
Hidden screws
The gate row assembly structure adopts a hidden screw design, and the screw heads cannot be seen from the surface, making the gate body beautiful and elegant.
High power motor
Not restricted by the ground, does not require flat ground. Infrared detection protection can be matched with infrared light sensor. The motor has large traction torque.
Large model gate row with built-in bearing
Made of high-quality 304 stainless steel and precision cast, the product has high precision, is strong and durable, and will never rust.
