Tripod Turnstile

Product Specifications

1. Compatible with lC/lD, magnetic cardbarcode card, anti-static, and other control equipment;

2. The brake lever runs smoothly, with low noise, and the unlocking is fast and reliable.

3. It has the emergency function of power failure, and the gate is automatically opened after a power failure
4. Protection grade: lPX4,
5. Infrared anti-pinch
6. Gate opening and closing delay
7. An illegal break-in to the police,
8. Anti-reverse intrusion.

Chassis material: Domestic standard 304 stainless steel

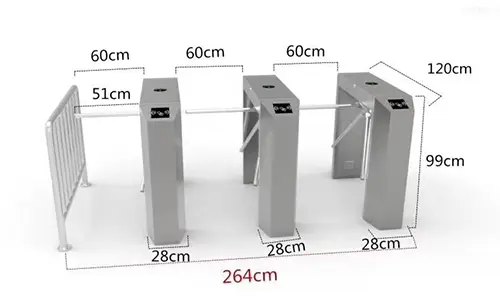

Chassis size: 1200*280*980 (mm)

Traffic width: 550mm≤W≤600mm

Traffic direction: one-way or two-way

Access method: two-way card swiping or facial

recognition access◆

Working voltage: AC220V 士10% V/50 ± 10% HZ

Protection level: lP44

Traffic speed: 40 people/minute (normally open), 25-30 people/minute (normally closed)Switching speed: 1-2 secondsWorking environment indoor, outdoor (shade shed)Working temperature: -20°C~70°C, relative humidity<90%6, no condensation

Product Features

Access contro

There are several methods to open a turnstile gate, and card swiping is among the most commonly used. It allows precise management of personnel entry and exit, ensuring one card corresponds to one person. Multiple access cards can also be configured upon request

Face recognition

Face recognition is an advanced access method for pedestrian turnstiles. Authorized personnel can pass by simply scanning their faces. This contactless, efficient solution ensures secure and smooth entry and can be integrated with attendance systems—ideal for offices, campuses, factories, and government buildings.

Palm Vein Recognition

The turnstile features advanced palm recognition, allowing authorized personnel to pass quickly and securely with a simple scan. It ensures efficient, contactless access while maintaining high-level security for your premises.

Triple anti-pinch, Safe passage

Equipped with mechanical, infrared induction, and circuit control triple protection, the system provides anti-pinch and anti-collision functions, effectively preventing injuries or impact accidents and ensuring safer passage.
